UNIVERSAL 4U125KW - barna
Termékkód: 4U-125KW-10

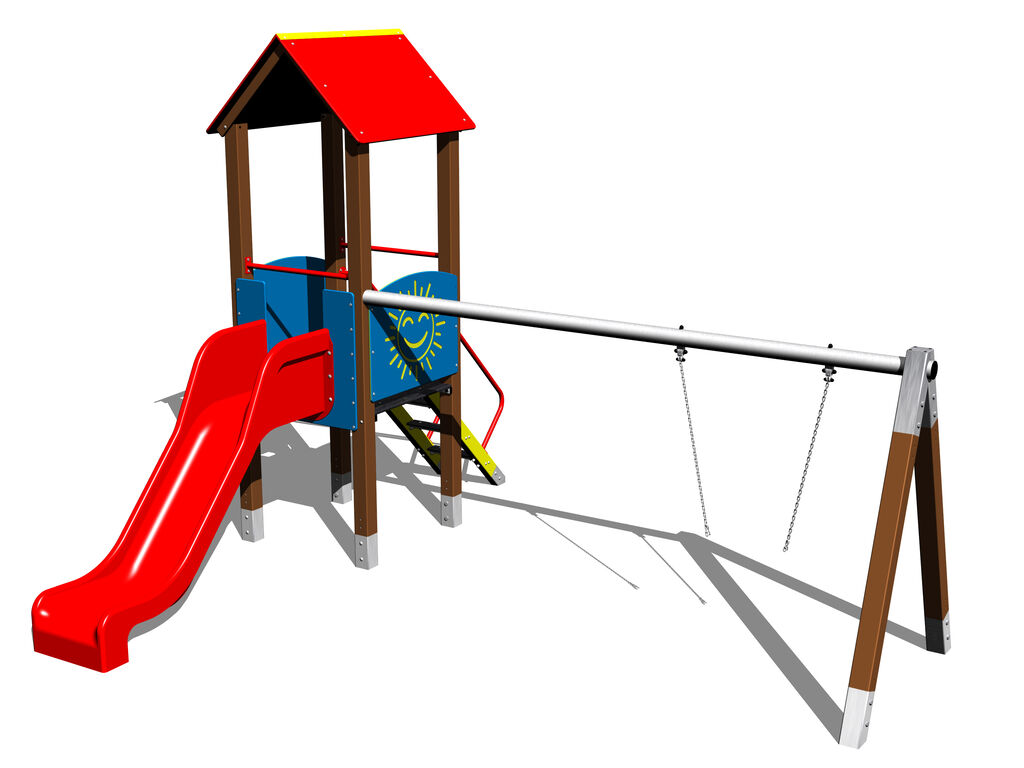

Seats and hinges are not part of the swing. It is necessary to buy a seat (1 pieces) of your choice and curtains (2 pieces). Tower, slide, A-shaped roof, 2x barrier, sloping ramp with steps and metal handles, metal beam. Több információ
Válassza ki a színt
Javasoljuk az alábbiak megvásárlását
BABY ülőke SB002 (láncokkal együtt, szab. mag. 1 m)

Normal ülőke SN001 (lánccal együtt)

Speciál ülőke SN003R (lánccal együtt)

Műszaki adatok
Termékkód: | 4U-125KW-10 |
---|---|
Súly: | 377.23 kg |
Ajánlott életkor: | 2-15 év |
Szabadesés magasság: | 1 m |
Terhelhetőség: | 324 kg |
Max. felhasználók száma: | 6 |

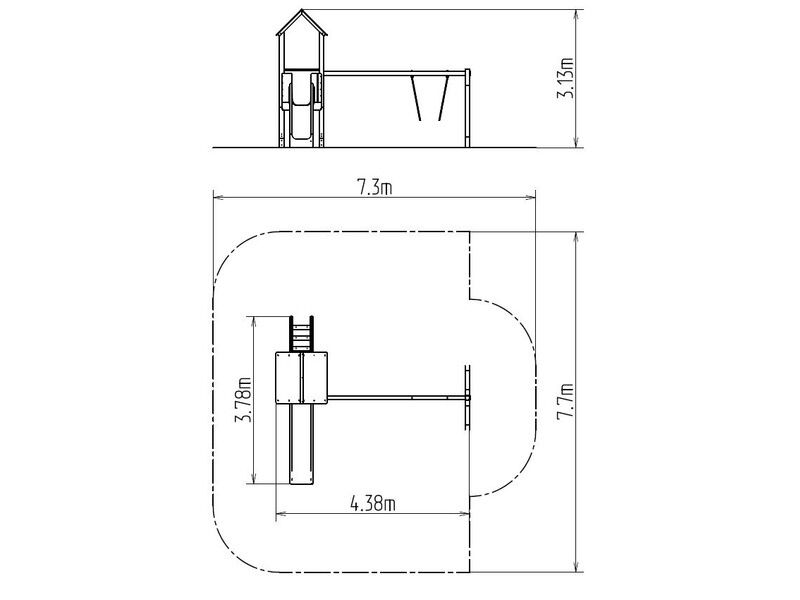

Méretek: | 4,38 x 3,78 x 3,13 m |
Szereléshez szükséges felület: | 7,3 x 7,7 m |
Felület, eséstompítás: | az EN 1177 szabvány szerint- füvesített terület |
The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roof is made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
A termékhez UNIVERSAL 4U125KW - barna még senki sem írt kérdést vagy hozzászólást Ne habozzon kérdezni.
Műszaki adatlap [170 kB, PDF]
Tervrajz [183.0 kB, DWG]
Tervrajz [45.0 kB, JPG]
